SIPHONIC ROOF DRAINAGE SYSTEMS

EXPLORE

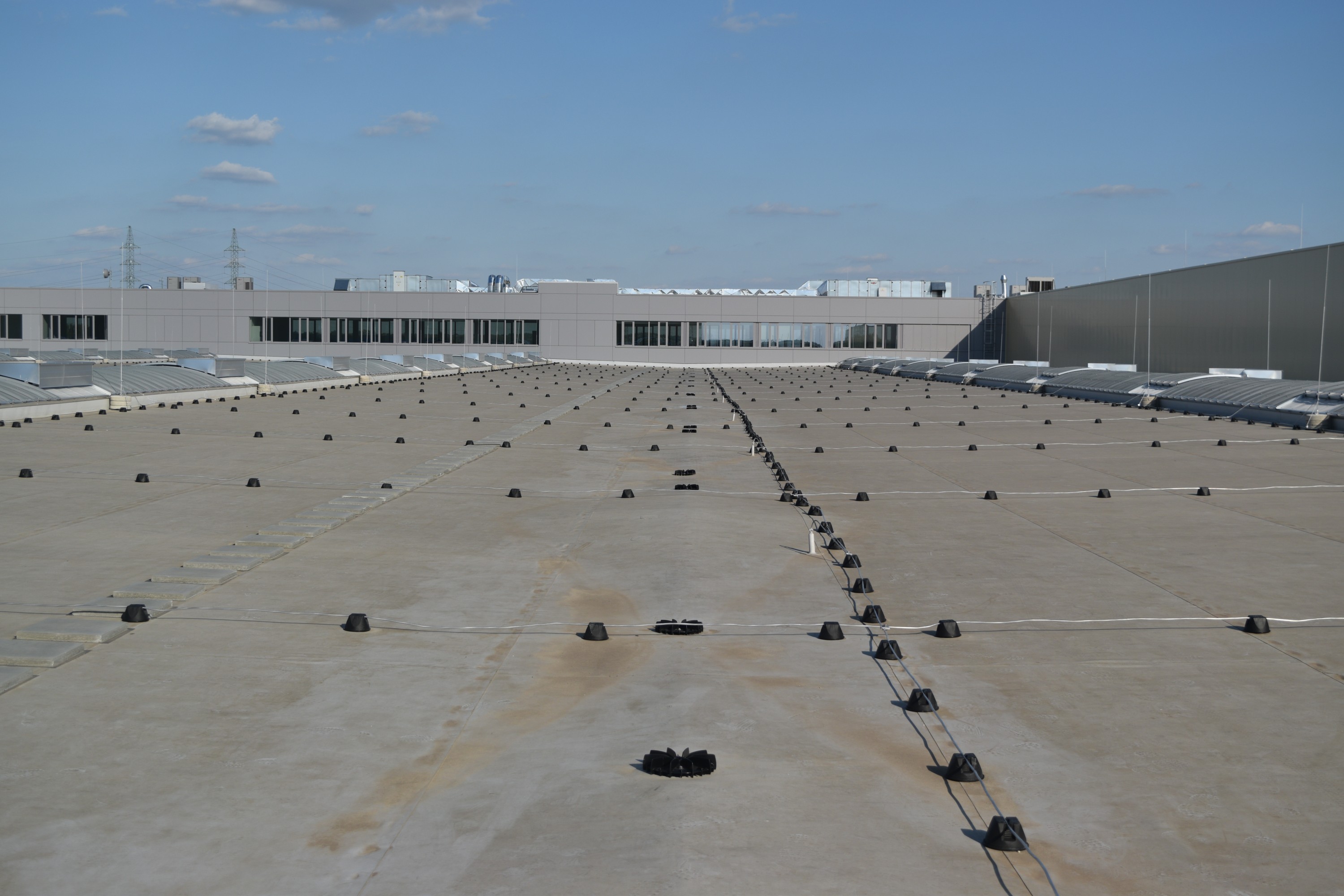

FAST AND EFFICIENT SIPHONIC DRAINAGE FOR FLAT ROOFS

Effective rainwater drainage systems are critical for ensuring the structural integrity and safety of flat or low-gradient roofs. Poorly drained roofs are vulnerable to overflows, leaks and even structural collapse if rainwater is allowed to accumulate.

With our comprehensive design service and range of high-quality outlets, pipes, fittings and accessories, you can rely on an industry-leading siphonic roof drainage solution tailored to your needs.

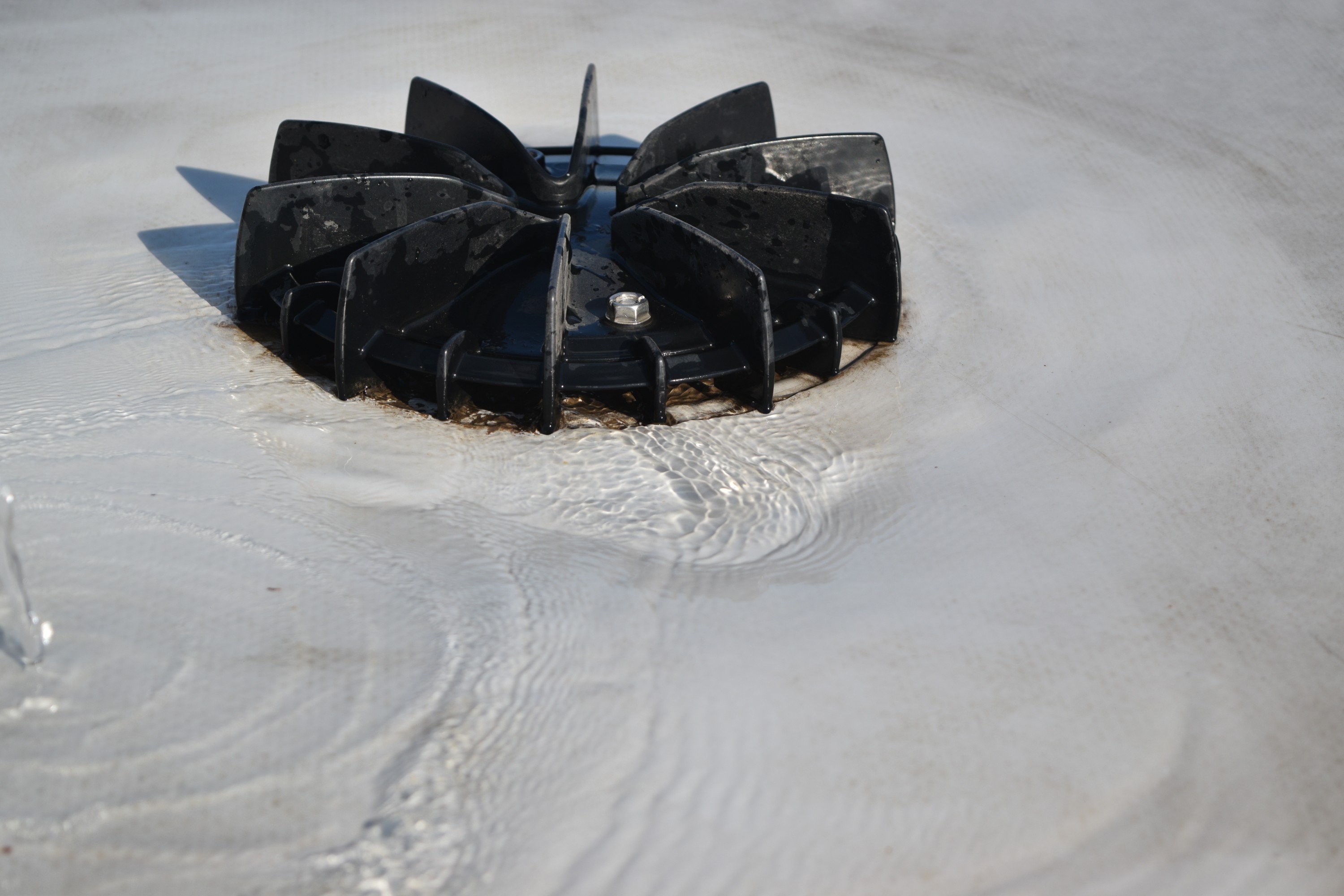

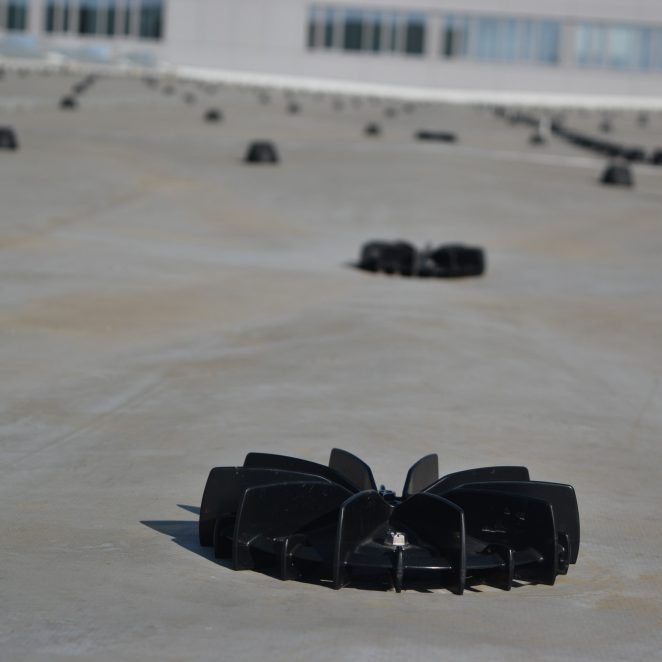

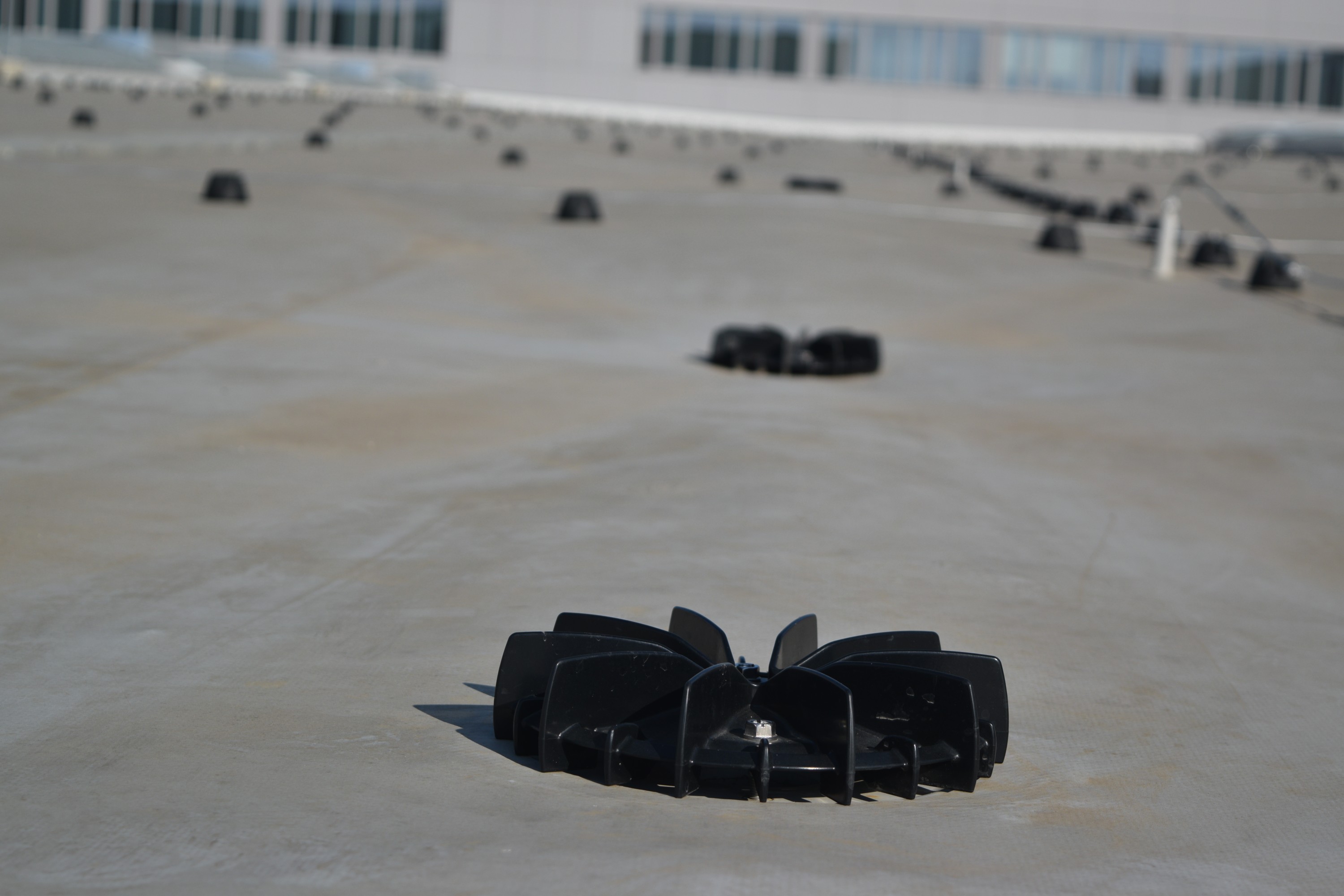

SIPHONIC OUTLETS

Pipelife siphonic outlets come pre-welded to adjoining tail pipes to simplify your installation process, save on welding time, and establish watertight fittings.

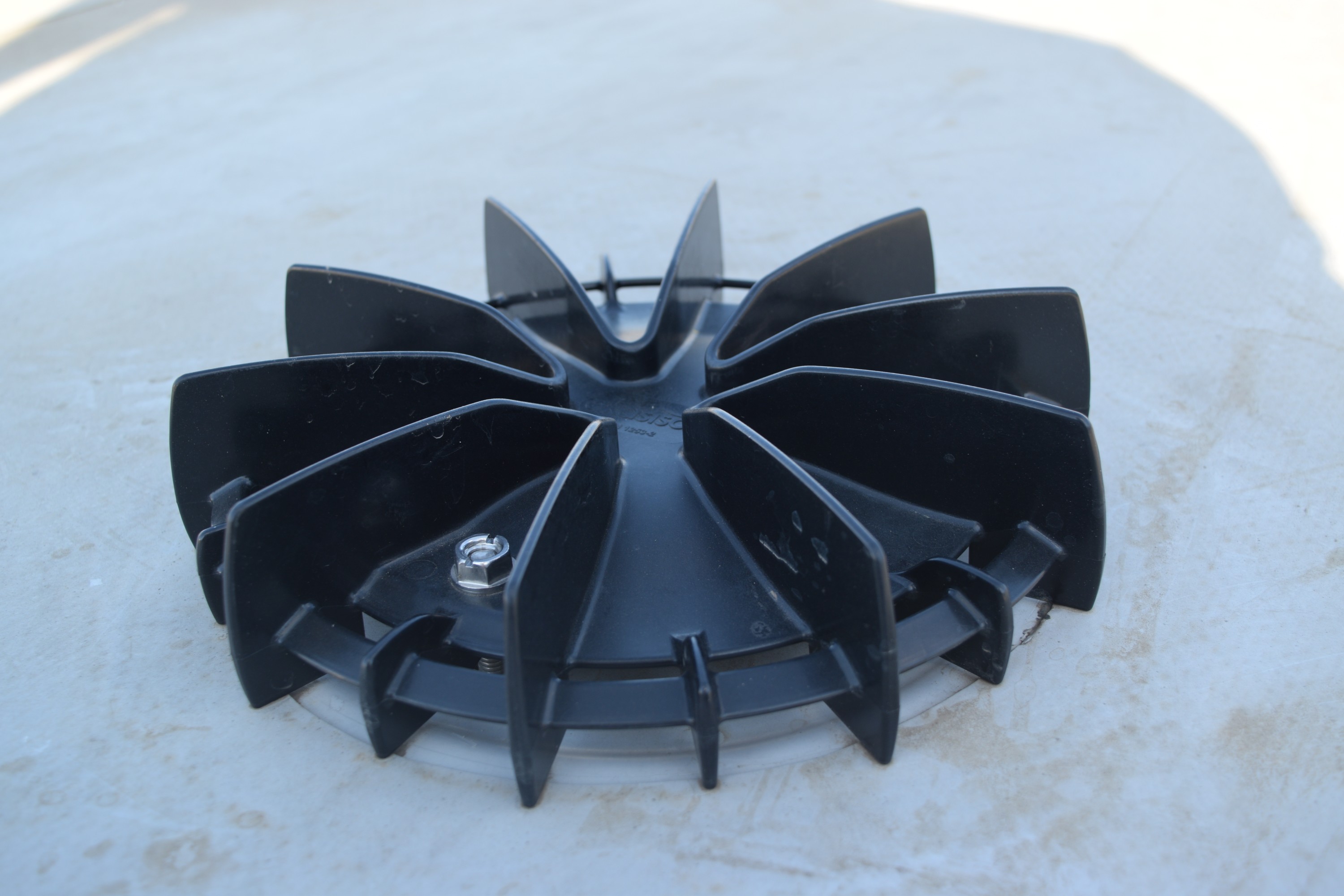

Beyond this, the outlets’ exposed air baffles are composed of automotive-industry-standard ASA thermoplastic that ensures longevity with superior UV, abrasion and impact resistance.

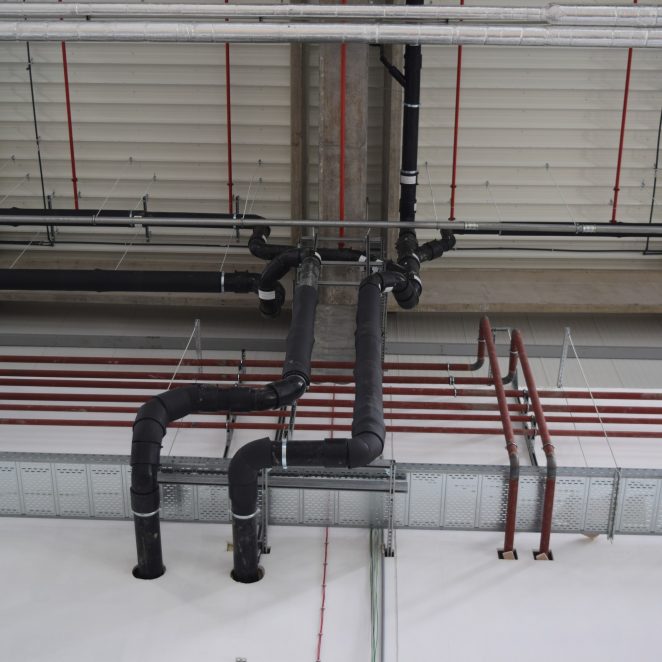

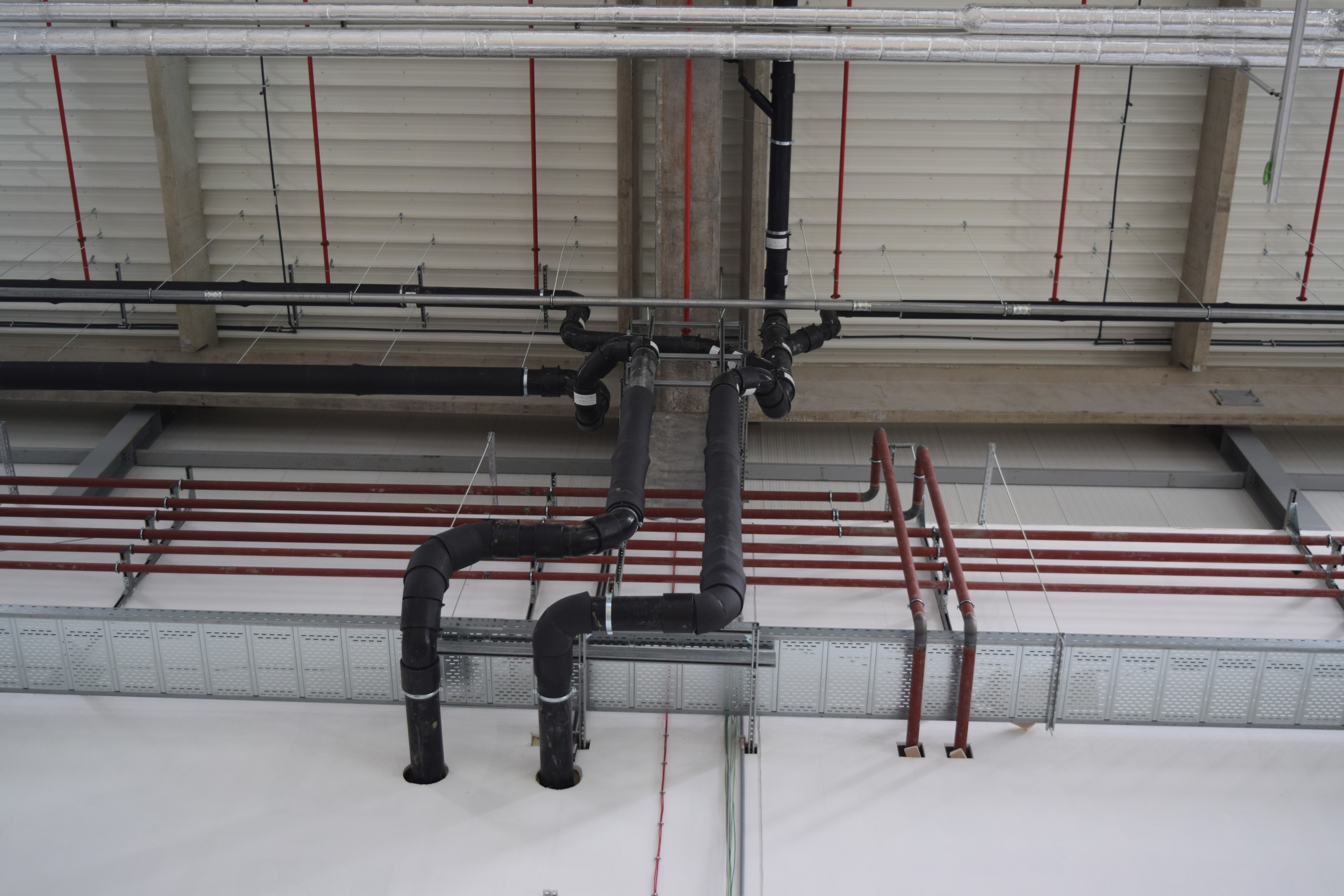

PE PIPE SYSTEMS

Our siphonic pipe system utilizes high-density polyethylene pipes made from top-quality raw materials to guarantee your system’s long-lasting performance.

Not only are fewer pipes required in siphonic setups, but they are also smaller in diameter than those used in traditional gravity systems. As a result, overall material requirements are reduced, along with the carbon footprint of your project.

FITTINGS

Our versatile fittings are easy to install and help to tailor siphonic systems around your specific project requirements.

They are compatible with butt-welding and electrofusion connection technologies to provide high tensile resistance and reliably leak-free fittings.

Accessories

With clamps, brackets, mounting rails, and thread rods, our comprehensive range of fasteners and fixings ensures secure and reliable pipe installations.

All of our siphonic system accessories are designed with durability, ease of installation and minimal maintenance in mind. Our team is happy to advise on the most suitable fasteners and fixings for your specific application.

SAVE UP TO 55% ON MATERIAL COSTS

BENEFIT FROM ADVANCED SIPHONIC DRAINAGE

Prepare your flat roof for heavy rainfall with an efficient drainage system tailored to your needs. Discover the benefits of our siphonic solution and find the perfect setup for your building.

MORE EFFECTIVE DRAINAGE

Pipelife siphonic systems drain at a flow rate of up to 20 l/s (DN75 outlet, 55 mm head of water). This exceeds standard siphonic drainage by 60% and is more than twice the flow rate of traditional gravity systems.

RESOURCE EFFICIENT

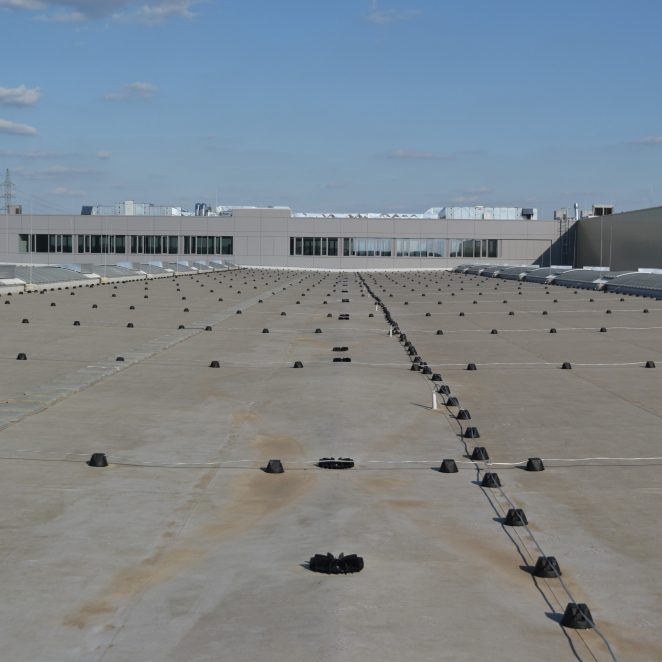

Siphonic solutions reduce costs and save space with fewer outlets, downpipes and underground network connections. No-slope connecting pipes with comparably smaller diameters run horizontally to further maximize available space.

MINIMAL MAINTENANCE

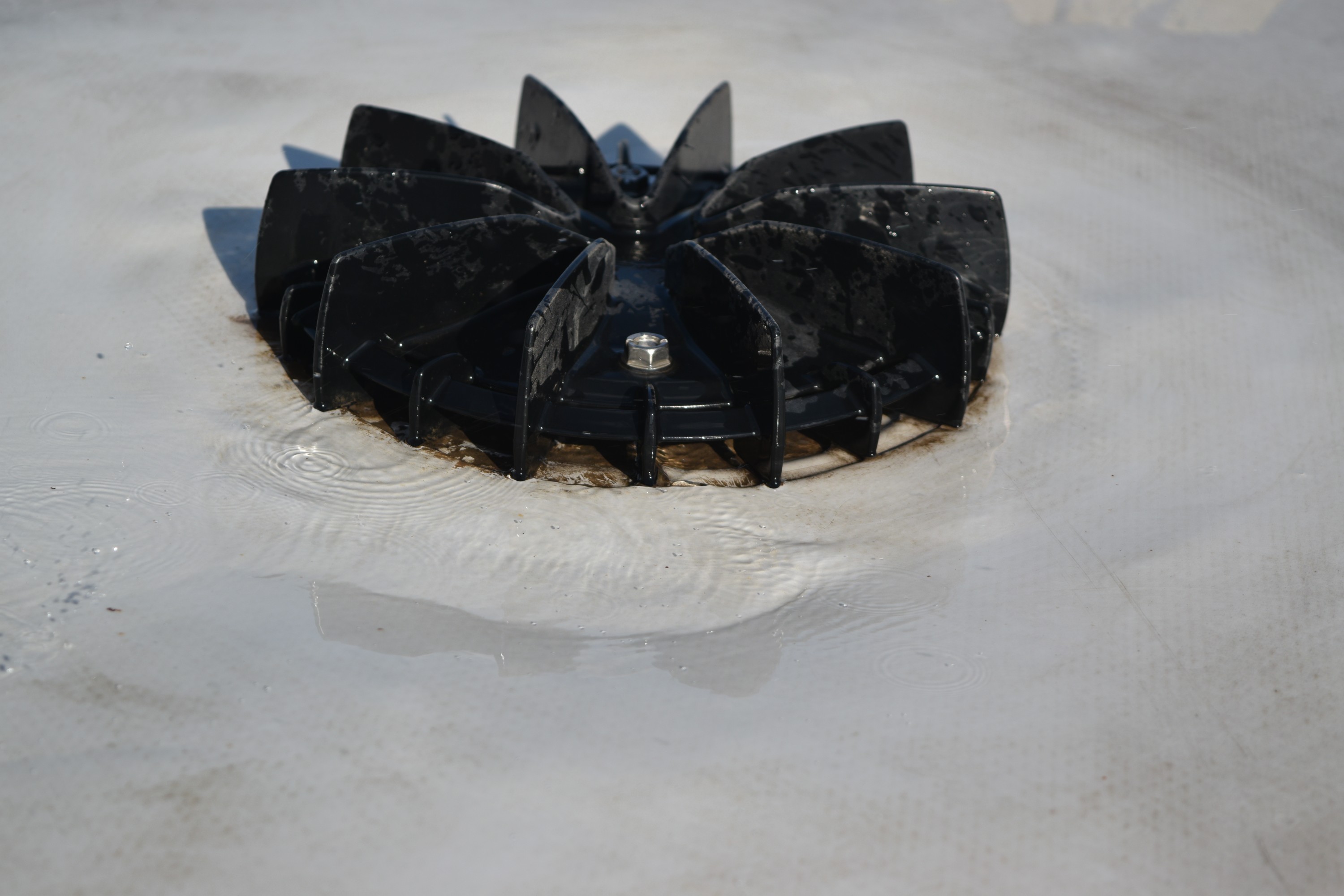

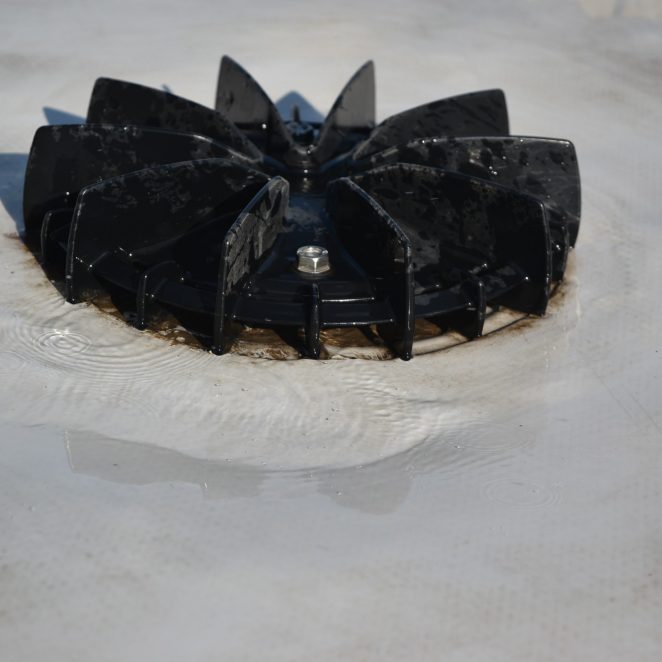

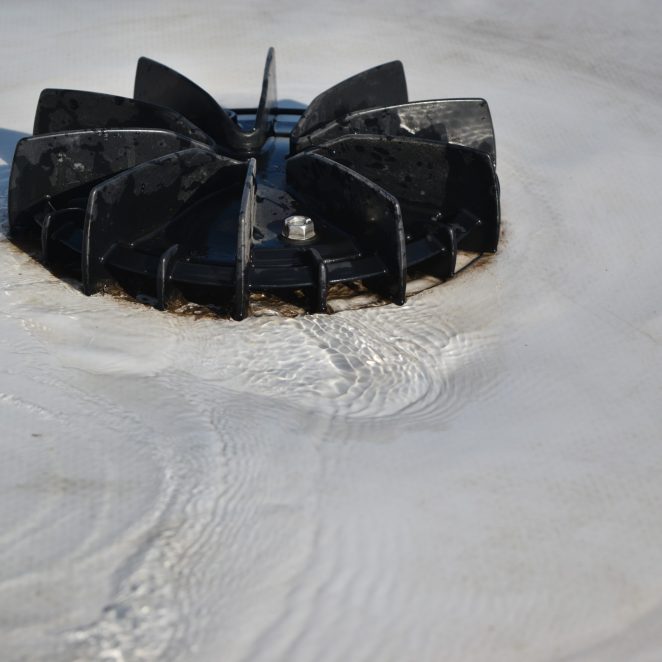

The high-velocity siphonic flow cleans the pipe interiors as water drains through. Air baffles are easily removed for swift clearance of leaves and debris.

LEAK-FREE CONNECTIONS

Our butt-welded and electro-fused pipes provide high tensile resistance and reliably leak-free fittings.

ROBUST LONGEVITY

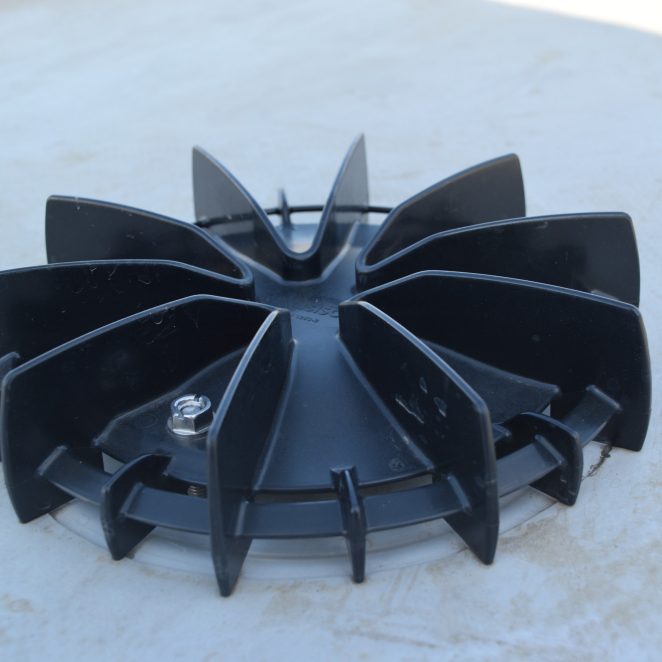

Exposed air baffles are composed of automotive-industry-standard ASA thermoplastic material that provides superior UV, abrasion and impact resistance.

OPTIMIZED INSTALLATION

Our siphonic roof outlets come pre-welded to adjoining tail pipes to streamline your installation process and ensure leak-proof connections.

SYSTEM LAYOUT DESIGN AND VISUALIZATION POSSIBILITIES

LEVERAGE OUR DESIGN SERVICE

Based on the specific requirements of your project, we can provide a complete system design service to tailor your siphonic solution for optimal performance.

UTILIZE BIM

If you prefer designing setups yourself, simply download our siphonic roof drainage library and use BIM to optimize your project.

Frequently Asked Questions

Siphonic roof drainage is a fast and effective rainwater drainage system for flat and low-gradient roofs. By keeping air out of the piping system and utilizing negative pressure, siphonic setups can evacuate rainwater at more than twice the flow rate of traditional gravity systems.

Flat and low-gradient roofs are vulnerable to excessive rainwater accumulation and require fast and efficient drainage to avoid compromising their structural integrity. Consequently, siphonic roof drainage is one of the most suitable options for flat roofs as it evacuates rainwater at more than twice the flow rate of traditional gravity systems.

Siphonic systems evacuate rainwater from flat roofs at more than double the flow rate of gravity systems. Where gravity setups allow a combination of water and air to enter drainage pipes, siphonic systems only permit water to avoid the formation of a vortex. Rainwater occupies the full internal profile of the pipe for a more efficient evacuation at a higher flow velocity. This reduces the number and diameter of pipes required, while also eliminating the need for slopes — saving space, reducing materials and facilitating greater design freedom.

Pipelife siphonic roof drainage systems can be installed on any flat or low-gradient roof with an incline of up to 3%. They are compatible with a variety of roof types, including cold, insulated, inverted and green roofs, and are a perfect fit for factories, warehouses, shopping malls, airport terminals, convention centers, apartment blocks, office buildings and hotels.

Siphonic roof drainage systems secure your roof’s structural integrity by draining rainwater at a high flow rate. If heavy rainfall is not drained efficiently, your roof could be vulnerable to overflows, sagging and leaks, while also being exposed to bacterial and fungal growth. We also offer parallel drainage systems for additional safety, designed to handle infrequent but high-intensity rainstorms.

Pipelife siphonic roof drainage systems utilize negative pressure to evacuate rainwater at more than twice the flow rate of a traditional gravity system. Where gravity systems allow a combination of water and air to enter the downpipe, siphonic systems only permit water. The siphonic mechanism produces a closed water column during drainage, which ensures a much higher flow velocity through smaller pipe diameters. During periods of high precipitation, the siphonic apparatus drains rainwater at a flow rate of up to 20 l/s*.

*DN75 outlet, 55 mm head of water

Siphonic systems are compatible with a diverse range of roof types, including cold, insulated, inverted and green roofs.

Pipelife siphonic roof drainage systems are manufactured from high-quality raw materials to last at least 50 years with minimal maintenance. Automotive-industry-standard ASA thermoplastic provides superior UV, abrasion and impact resistance for exposed air baffles, while butt-welded and electrofusion pipe connections  provide high tensile resistance and reliably leak-free fittings.

Pipelife siphonic roof drainage systems are competitively priced in each local market. They are all-encompassing solutions fitted to the custom requirements of your building, and the price varies accordingly. Please get in touch with your local Pipelife partner for a detailed offer.

Our siphonic roof drainage systems can be bought directly from your local Pipelife partner. We are present in over 20 European countries, all of whom will be happy to field any of your purchasing inquiries. For more details, see the list of our operating countries at the bottom of the page.

Pipelife siphonic systems can be used on any flat roof with a gradient of 3% or less, including cold, insulated, inverted and green roofs. However, as the optimal setup varies from project to project, we recommend taking advantage of our comprehensive design service. We create a complete layout design of your setup, tailoring how and where each element should be to ensure optimal efficiency and functionality.

Downloads

Related Products

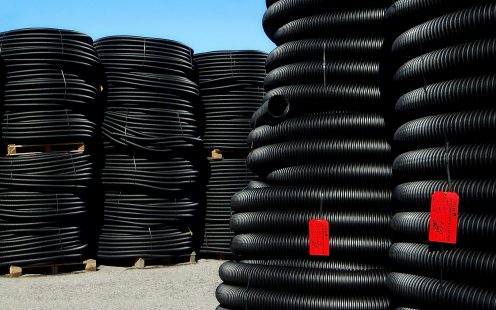

Drainage Pipe Systems

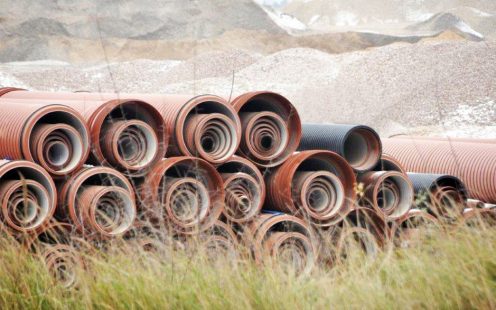

Warsaw Bypass S2 Road Drainage

Road Drainage

SONY DSC

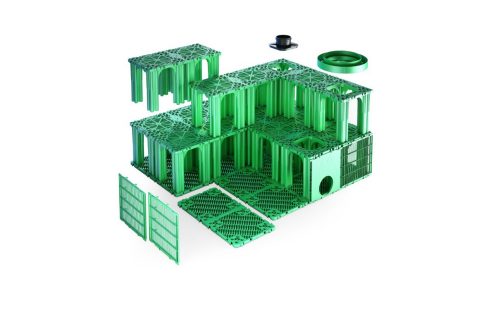

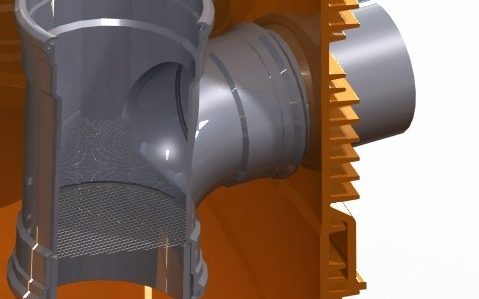

Stormwater Infiltration
